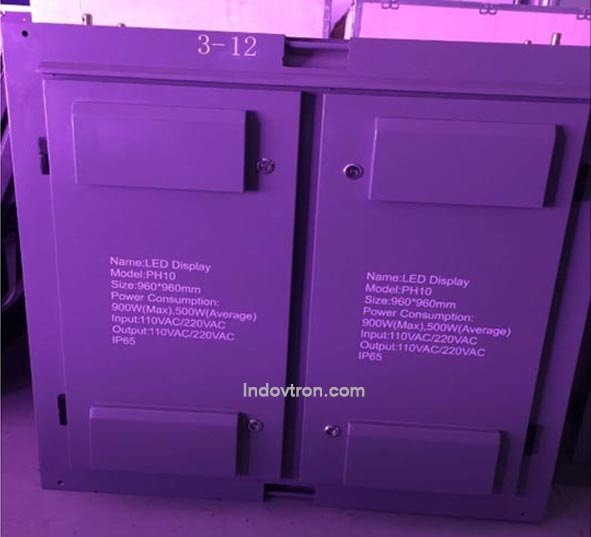

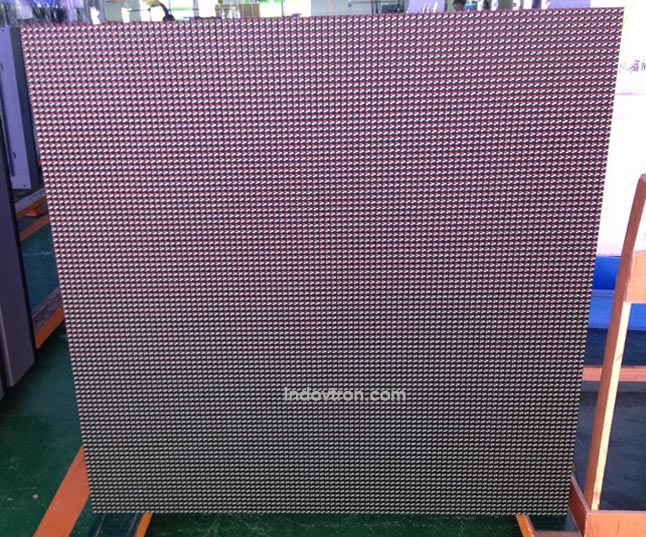

Videotron model P10 DIP 346 RGB outdoor led cabinets untuk luar ruangan
Spesifikasi Videotron:
| Led Lamp | DIP346 |
| Pixel Pitch | 10mm |
| Module Resolution | 32*16 |
| Cabinet Resolution | 96*96 |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 10000 dots/m² |
| Drive Scan | 1/4 |
| Refresh rate | ≥1500Hz |
| Drive IC | MBI5124 |
| Grayscale | 14bit |
| Module Size | (W)320mm*(H)160mm |
| Cabinet size | (W)960mm*(H)960mm |
| Brightness | ≥6500 cd/m² |
| Viewing angle | ≦110° |
| The best viewing distance | ≥10m |
| Input voltage | AV220V±10% 50Hz(AC110V to choose) |
| Working voltage | DC5V |
| Max Power Consumption | 450W/pcs |
| Ave power consumption | 150W/pcs |
| Life Span | 50000H |
| Working temperature | -20℃ to 60 ℃ |
| Net weight | 60KG/pcs |
