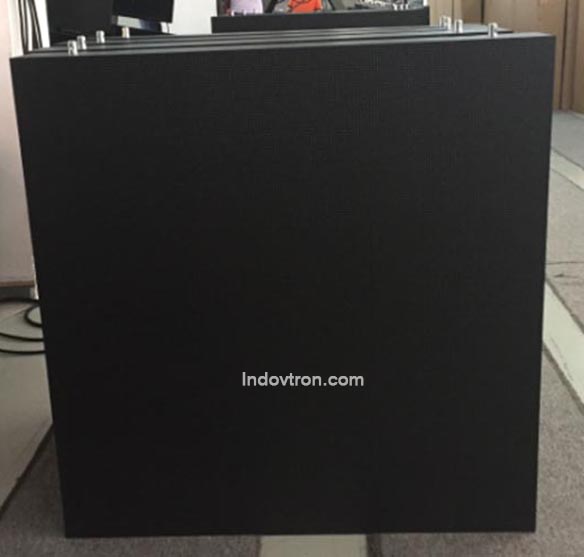

Videotron model P5 SMD2121 RGB indoor led cabinets luar ruangan
Spesifikasi Videotron:
| Led Lamp | SMD2121 |
| Pixel Pitch | 5mm |
| Module Resolution | 64*32 |
| Cabinet Resolution | 128*128 |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 40000dots/sqm |
| Drive Scan | 1/16 |
| Refresh rate | ≥1920Hz |
| Drive IC | MBI5124 |
| Grayscale | 14bit |
| Module Size | (W)320mm*(H)160mm |
| Cabinet size | (W)640mm*(H)640mm |
| Brightness | ≥1200 cd/m² |
| Viewing angle | ≦120° |
| The best viewing distance | ≥5m |
| Input voltage | AV220V±10% 50Hz(AC110V to choose) |
| Working voltage | DC5V |
| Max Power Consumption | 200W/pcs |
| Ave power consumption | 70W/pcs |
| Life Span | 50000H |
| Working temperature | -20℃ to 60 ℃ |
| Net weight | 25KG/pcs |
