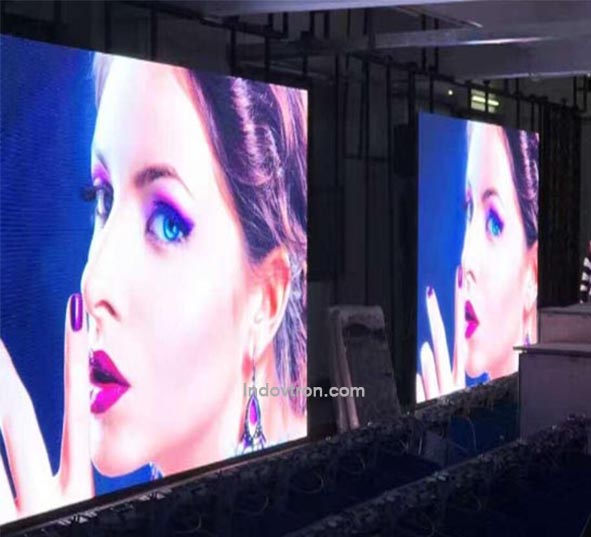

Videotron model P8 SMD3535 RGB outdoor led cabinets untuk luar ruangan
Spesifikasi Videotron:
| Led Lamp | SMD3535 |
| Pixel Pitch | 8mm |
| Module Resolution | 32*16 |
| Cabinet Resolution | 128*128 |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 15625 dots/sqm |
| Drive Scan | 1/4 |
| Refresh rate | ≥1920Hz |
| Drive IC | MBI5124 |
| Grayscale | 14bit |
| Module Size | (W)256mm*(H)128mm |
| Cabinet size | (W)1024mm*(H)1024mm |
| Brightness | ≥5000 cd/m² |
| Viewing angle | ≦120° |
| The best viewing distance | ≥8m |
| Input voltage | AV220V±10% 50Hz(AC110V to choose) |
| Working voltage | DC5V |
| Max Power Consumption | 800W/pcs |
| Ave power consumption | 300W/pcs |
| Life Span | 50000H |
| Working temperature | -20℃ to 60 ℃ |
| Net weight | 60KG/pcs |
