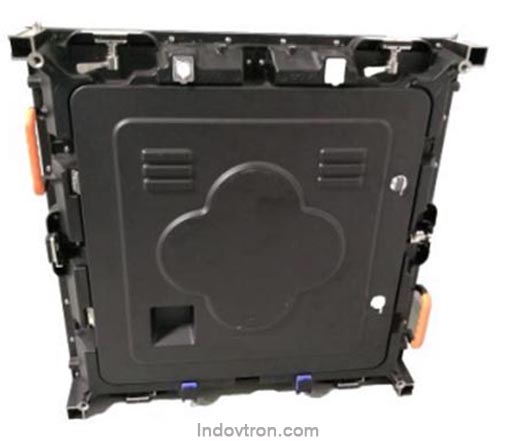

Videotron P3 SMD2121 indoor Die-casting aluminum cabinet khusus dalam ruangan
Spesifikasi Teknis Videotron:
| Led Lamp | SMD2121 |
| Pixel Pitch | 3 mm |
| Module Resolution | 64*64 |
| Cabinet Resolution | 192*192 |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 111111 dots/sqm |
| Drive scan | 1/16 |
| Refresh rate | ≥1920Hz |
| Drive IC | MBI5124 |
| Grayscale | 14bit |
| Module Size | (W)192mm*(H)192mm |
| Cabinet size | (W)576mm*(H)576mm |
| Brightness | ≥1200 cd/m² |
| Viewing angle | ≦120° |
| The best viewing distance | ≥3m |
| Input voltage | AV220V±10% (AC110V to choose) |
| Working voltage | DC5V |
| Max Power Consumption | 400W/pcs |
| Ave power consumption | 135W/pcs |
| Life Span | 50000H |
| Working temperature | -20℃ to 60 ℃ |
| Net weight | 8.5KG/pcs |
