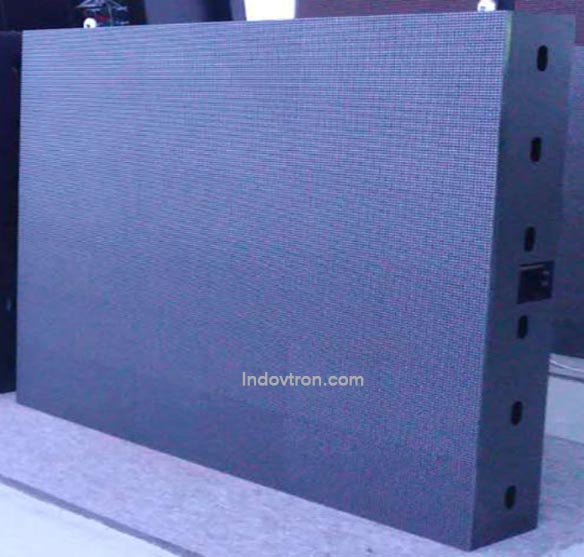

Videotron model P4 SMD2121 RGB indoor led cabinets luar ruangan

videotron model P4 SMD2121 RGB indoor led cabinets luar ruangan

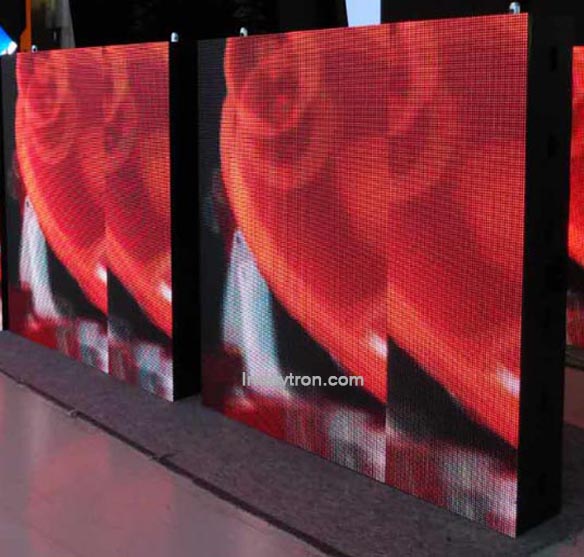

videotron model P4 SMD2121 RGB indoor led cabinets preview luar ruangan

Videotron model P4 SMD2121 RGB indoor led cabinets luar ruangan

Spesifikasi Videotron:

Led Lamp SMD2121
Pixel Pitch 4mm
Module Resolution 64*32
Cabinet Resolution 256*256
Pixel Configuration 1R1G1B
Pixel Density 62500dots/sqm
Drive Scan 1/16
Refresh rate ≥1920Hz
Drive IC MBI5124
Grayscale 14bit
Module Size (W)256mm*(H)128mm
Cabinet size (W)1024mm*(H)1024mm
Brightness ≥1200 cd/m²
Viewing angle ≦120°
The best viewing distance ≥4m
Input voltage AV220V±10% 50Hz(AC110V to choose)
Working voltage DC5V
Max Power Consumption 800W/pcs
Ave power consumption 300W/pcs
Life Span 50000H
Working temperature -20℃ to 60 ℃
Net weight 45KG/pcs
